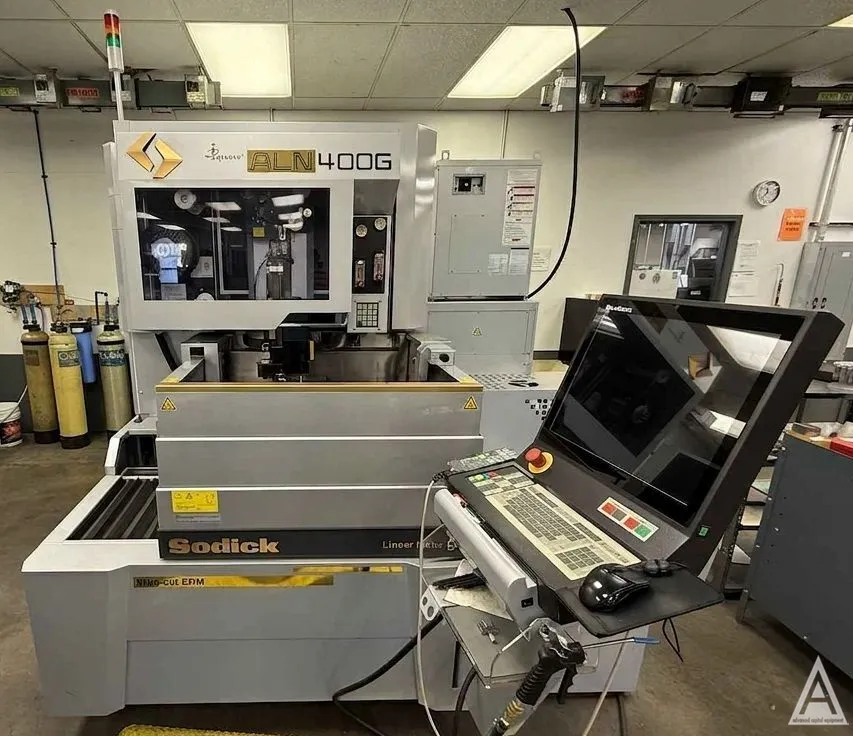

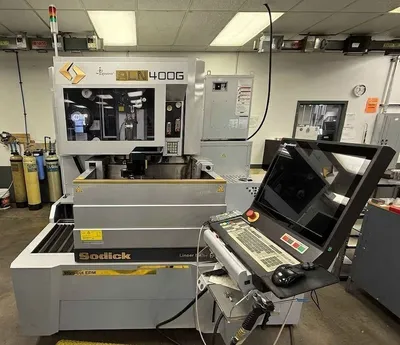

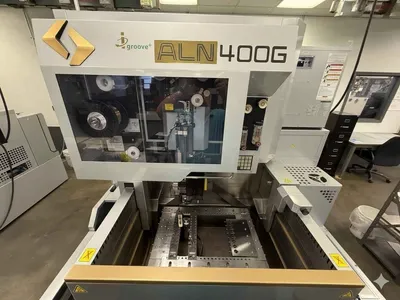

2024 Sodick ALN400G
Have one to sell?
ConditionUsed
1 available
- Includes wire Chopper
- Signal Tower Light
- Probe system
- Tooling shown on work table is not included.
Imperial
| X | 15.75" |
| Y | 11.81" |
| Z | 9.84" |
| Max. Workpiece Dimensions | 23.6 x 18.5 x 9" |
| Max. Workpiece Weight | 1102 Lbs. |
| Auto Threading (Yes/No) | Yes |
| Submerged (Yes/No) | Yes |
| Taper Angle | 25 |
| Taper Height | 5 |
| U-V Travels | +/- 5.9" |

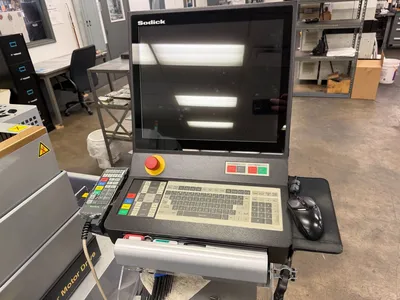

| Control Type | Sodick SPW |
| Screen Size | 19 |
| Touchscreen Display | Yes |
| Program Input Methods | Keyboard, USB, Ethernet |
| Chiller Included | Yes |
| Glass Scales on X & Y Axes | Yes |
- Includes wire Chopper
- Signal Tower Light
- Probe system
- Tooling shown on work table is not included.
