| X | 12.6" | 320.04 mm |
| Y | 8.7" | 220.98 mm |
| Z | 7" | 177.8 mm |
| Max. Workpiece Dimensions | 26 x 17 x 10" | 26 x 17 x 10" |
| Max. Workpiece Weight | 1100 Lbs. | 1100 Lbs. |
| Auto Threading (Yes/No) | Yes | Yes |
| Submerged (Yes/No) | Yes | Yes |
| Taper Angle | 30 | 30 |
| Taper Height | 3.0 | 3.0 |
| U-V Travels | +/- 2.364" | +/- 2.364" |

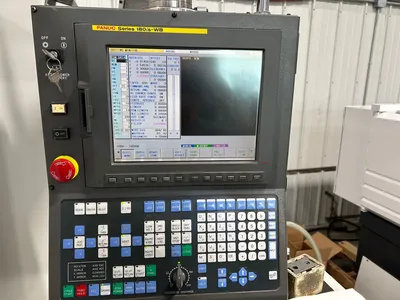

| Control Type | Fanuc AC/DC | Fanuc AC/DC |
| Screen Size | 12 | 12 |
| Program Input Methods | Keyboard, Ethernet | Keyboard, Ethernet |
| Chiller Included | Yes | Yes |
| Glass Scales on X & Y Axes | Yes | Yes |
- Ultra High resolution Glass Scales
- Ultra High resolution servo motors
- Ultra High precision/large diameter ballscrews (32mm)
- Auto Ball Screw Greasing
